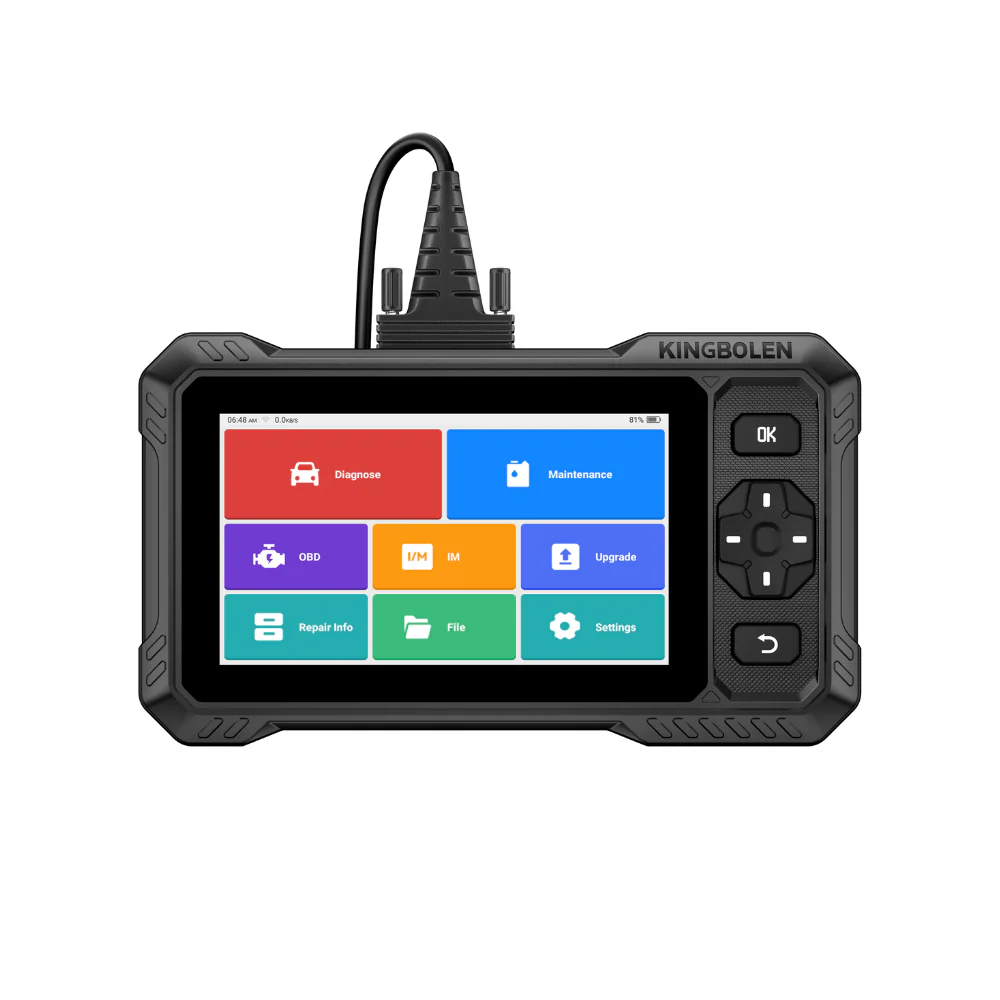

KINGBOLEN S6 ELITE Free Updates Full System Bi-Directional OBD2 Scanner

KINGBOLEN S6 ELITE OBD2 SCANNER Key Features

Core Diagnostic & Functionality
Full System Diagnostics: Provides OE-level diagnosis for all Electronic Control Units (ECUs) in the vehicle, including Engine, ABS, SRS, Transmission, and more.

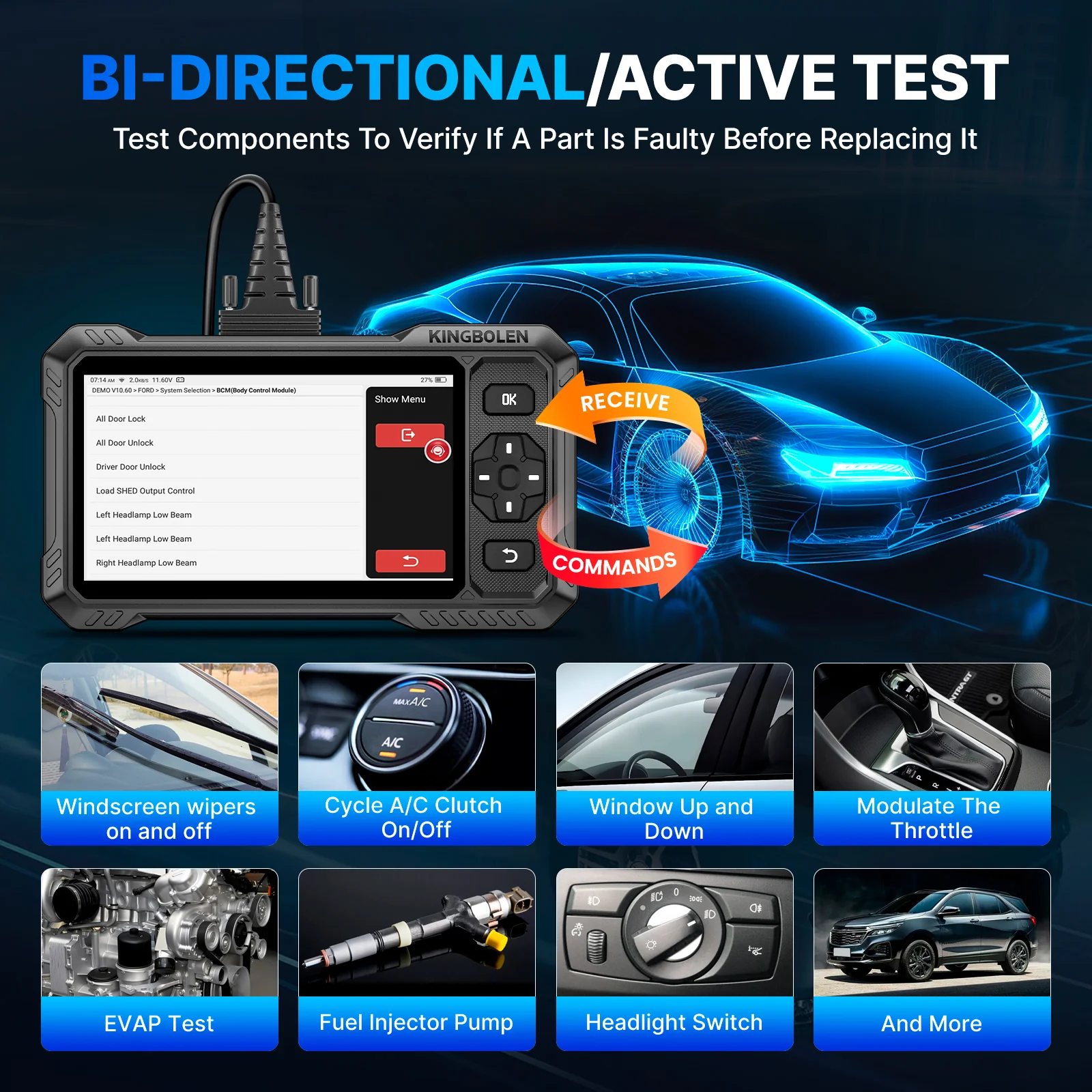

Bi-Directional Control (Active Test): Capability to send commands to the ECU to perform specific tests (e.g., controlling solenoids, injectors, pumps) to quickly pinpoint faults.

15+ Reset/Maintenance Services: Includes essential maintenance functions such as Oil Light Reset, Electronic Parking Brake (EPB) Reset, Steering Angle Sensor (SAS) Calibration, Battery Management System (BMS) Reset, etc.

OBD2 Full Function: Supports all 10 modes of OBDII testing, including reading/clearing Diagnostic Trouble Codes (DTCs), viewing Live Data Stream, I/M Readiness Status, and Freeze Frame Data.

Compatibility & Protocols
Extensive Vehicle Coverage (110+ Car Brands): Supports diagnostics for over 110 major vehicle makes and models.

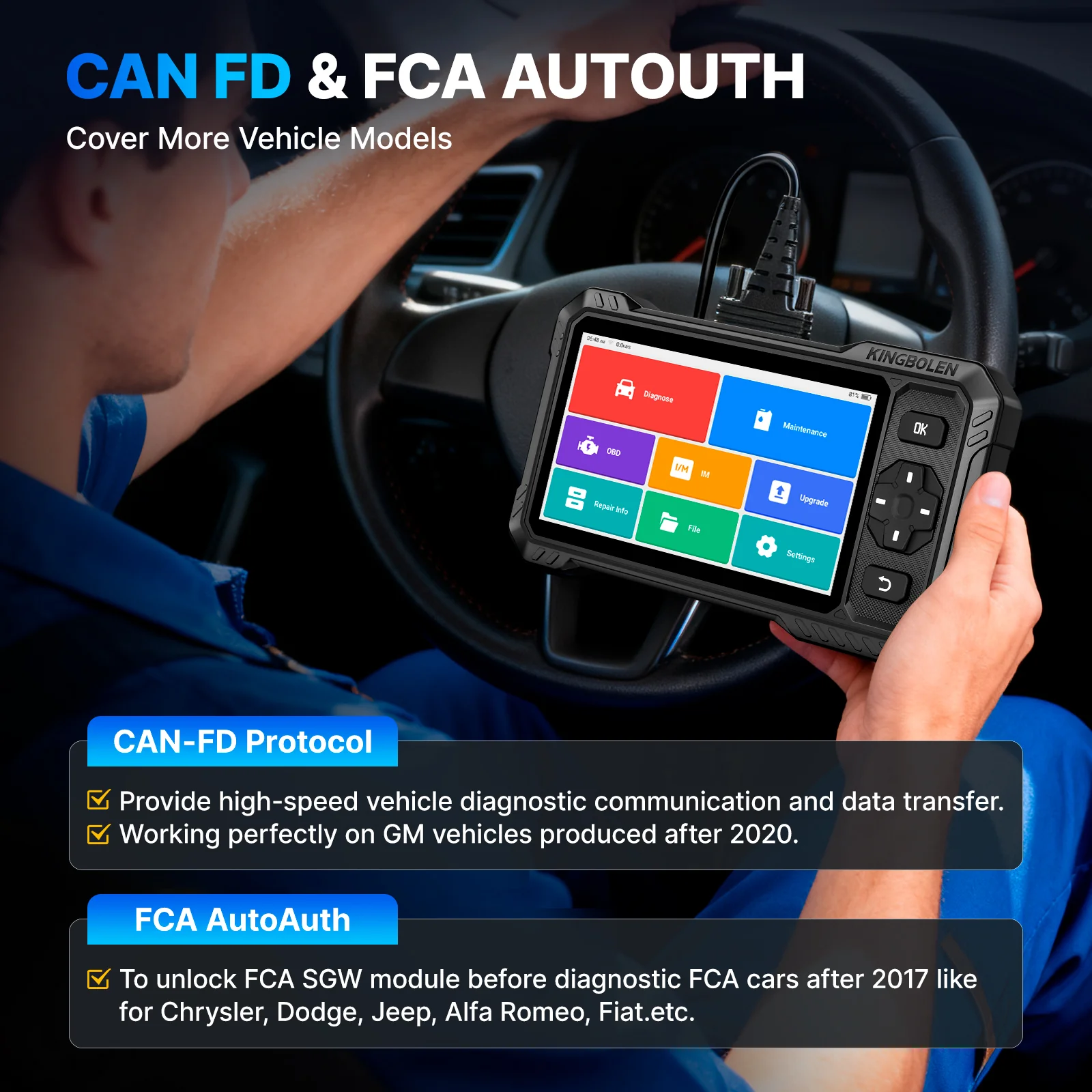

CAN FD Protocol Support: Compatible with the latest CAN FD protocol for high-speed diagnostics on newer vehicles, including 2020+ GM models.

FCA AutoAuth: Supports Secure Gateway Access for 2018 and newer FCA vehicles (Chrysler, Dodge, JEEP, etc.).

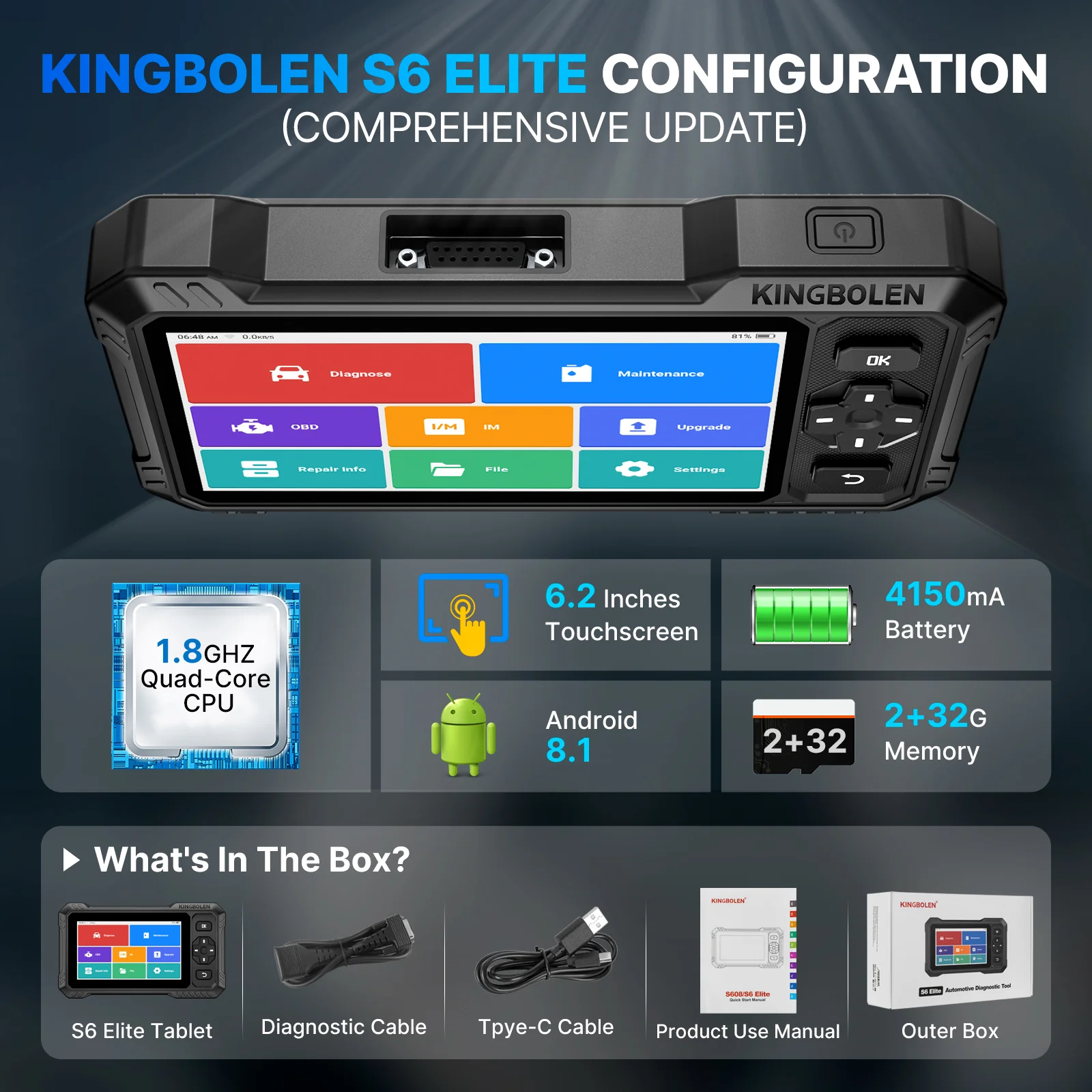

Hardware & System Specifications
Operating System: Runs on the stable Android 8.1 operating system.

High-Performance CPU: Equipped with a Quad-core 1.8GHz processor for smooth and fast operation.

Ample Memory & Storage: Features 2GB RAM + 32GB Storage, providing fast performance and space for storing diagnostic reports.

HD Touch Screen: Features a 6.2-inch (or 6-inch, as noted in the image text) high-definition touch screen for intuitive operation.

Large Battery: Built-in 4150mAh large capacity battery for extended usage time.

User Experience & Added Value
Lifetime Free Updates (No Subscriptions): Software receives free one-click updates for life, eliminating the need for annual subscription fees.

4-IN-1 Live Data Graph: Allows up to four live data streams to be displayed graphically simultaneously for easy comparison and analysis.

Auto VIN & Auto Scan: Intelligently identifies the vehicle's VIN and automatically initiates the diagnostic scan.

Health Report: Supports generating, sharing, and printing comprehensive diagnostic reports.

Multi-Language Support (28 Languages): Caters to a global user base with support for 28 different languages.

DTC Lookup & Code Search: Integrated function to quickly look up trouble codes for detailed information and repair tips.

Parameter

• Diagnosis Level: All System Diagnosis
• Diagnosis Software Language: 28
• VCI Connector: Wired connection
• Commercial Vehicle: ×
• FCA: √
• Warranty: 1 year
• Free Upgrade: Free

• Battery: 3.8V/4150mAh
• Screen: 6"2 1024*600
• System: Android 8.1
• Memory: 2G
• Storage: 32G
• Camera: ×
• WIFI: 2.4Hz

• CAN FD: √
• DOIP: ×
